Fabrication - Tracking Guides or Spill Edges
Our durable and flexible guide strips can we welded onto the top and bottom of our conveyor belts for numerous purposes such as belt tracking, spill edges or even as cleats in incline situations.

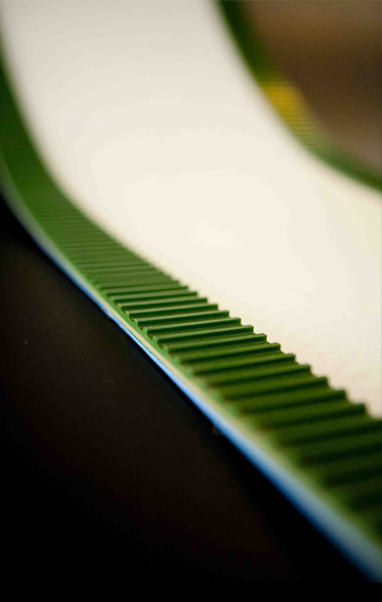

There are three standard types available shown below along with castellated guides shown in the picture on the right hand size which can be cut to any width.
Type M |
Type K |
Type R |
Type |
W |
H |
Weight |
Drum diameters |
||
Cleat |
Spill Edges |
Chevron (mm) |
||||
M6 |
6 |
4 |
22 |
30 |
30 |
30 |
M8 |
8 |
5 |
42 |
50 |
50 |
50 |
M10 |
10 |
6 |
61 |
70 |
70 |
70 |
M13 |
13 |
8 |
98 |
90 |
90 |
90 |
M17 |
17 |
11 |
170 |
100 |
100 |
100 |
K8 |
8 |
5 |
35 |
50 |
50 |
50 |
K10 |
10 |
6 |
51 |
60 |
60 |
60 |
K13 |
13 |
8 |
86 |
70 |
70 |
70 |
K17 |
17 |
11 |
150 |
90 |
90 |
90 |
R8 |
8 |
8 |
77 |
60 |
135 |
200 |
R12 |
12 |
12 |
120 |
60 |
180 |
320 |
R15 |
20 |
15 |
300 |
135 |
320 |
400 |
|
|
|
