Fabrication - Sidewalls

< Back to fabrication

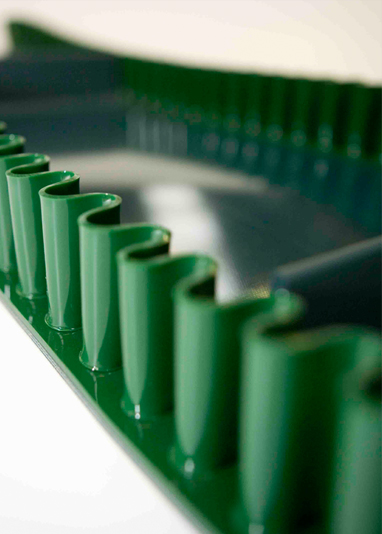

Sidewalls create an ideal solution for bulk product inclined transportation. Combined with cleats they allow the maximum amount of product to be moved with minimal spillage or damage.

Sidewalls offer an alternative to traditional troughed belts and can increase capacity by 50-80% and enable both inclined and horizontal transport on the same conveyor.

Available in white, black, blue and green.

Properties:

1) Wear and tear resistant

2) Suitable for small pulleys

3) Easy to repair

4) Partially self cleaning with excellent release properties

5) Chemical resistant

6) Work well in low and high temperatures (-20 till +110 deg C)

7) Can run directly on return rollers


Type

H
Height
(mm)

W
Wave Width
(mm)

W*
Foot Width
(mm)

P
Wave Pitch
(mm)

Weight
(g/m)

Drum diameters (mm)

Sidewalls

Sidewall
and cleat

SU20

20

23

33

25.4

200

80

100

SU30

30

23

33

25.4

260

80

100

SU40

40

23

33

25.4

330

100

100

SU60

60

45

55

50.8

510

100

125

SU80

80

45

55

50.8

590

130

130

SU100

100

45

55

50.8

700

160

160

SU120

120

45

55

50.8

850

185

185

SU140

140

45

55

50.8

1020

210

210

Based on 20 deg C temperatures.  Lower temperatures may require larger diameter drums.

Diagram of a swan neck belt to follow.
