Fabrication - Flighting/ Cleating

< Back to fabrication

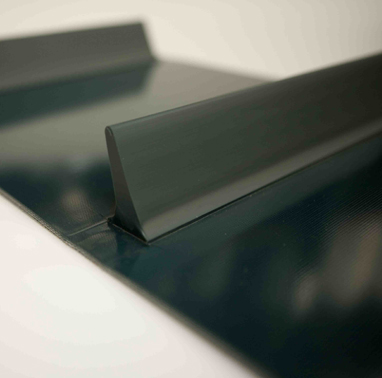

Inclined conveyors sometimes require belts to have profiles or cleats fitted onto the carrying surface to carry products up steep angles and to prevent slippage back down the belt whilst also increasing the capacity of product the belt will convey.

Examples of patterns:


Single cleat

Multiple cleats

Chevron Pattern

Tracking guide

Spill Edges

Ladder Pattern

PVC Cleat Sizes:


Inclined Cleat

http://www.esbelt.com/Imatges/series/PERF_NL.gif

Profile

Material

Dimensions mm

Weight gr/m

Hardness
ºSh

b

h

a

Pitch

min Ø

C30

PVC

25.00

30.00



430

70 .A

50

120

C40

PVC

25.00

40.00



550

70 .A

50

120

C50

PVC

25.00

50.00



700

70 .A

50

120

C60

PVC

25.00

60.00



780

70 .A

50

150

C70

PVC

40.00

70.00



1240

70 .A

130

170

C80

PVC

40.00

80.00



1400

70 .A

130

180


Straight/ T Cleat

http://www.esbelt.com/Imatges/series/PERF_NV.gif

Profile

Material

Dimensions mm

Weight gr/m

Hardness ºSh

b

h

a

Pitch

min Ø

T20

PVC

25.00

20.00



285

70 .A

45

120

T30

PVC

25.00

30.00



370

70 .A

45

120

T40

PVC

25.00

40.00



450

70 .A

45

120

T50

PVC

25.00

50.00



600

70 .A

45

120

 T60

PVC

25.00

60.00



700

70 .A

45

150

Fabric Reinforced Cleats upto 100mm high, straight and inclined.
